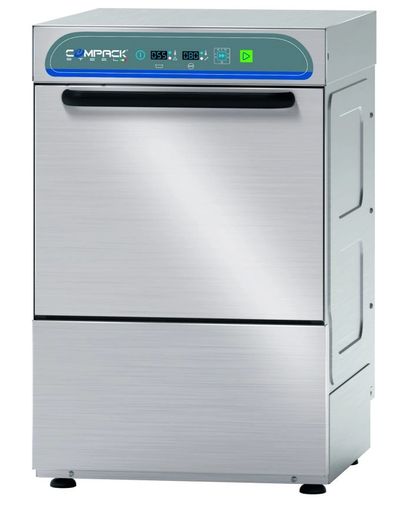

COMPACK DISHWASHERS - POWER AND RELIABILITY

---

The COMPACK Dishwashers stands out for its versatility of models suitable for nearly any situation. The simple electronic board control system makes it possible to set and control the rinsing and draining times and temperatures and the relevant Thermostops, crucial for ensuring excellent final results. With the control panel you can choose one of its 4 washing cycles and one automatic drain cycle. Easily viewed on the display are the the tank and boiler temperature, the messages of the Self-diagnosis system and the Scheduled Maintenance warning. The smart Start button changes colour to always keep you up-to-date on the dishwasher status with the greatest ease.

The factory fitted drain pump allows you to handle the drain automatically and perform a partial replacement of clean water at each wash cycle.

The electronic control allows you to manage various parameters to give you an absolute customisation level and the continuous self-diagnosis allows you to minimise machine downtime. The standard double peristaltic electric rinse-aid and detergent dispenser ensures the best result from each wash cycle with great savings thanks to the precise dosage managed by the electronic card; whereas, the moulded washing and rinsing arms ensure great reliability and durability. The Thermostop function checks that washing and rinsing begin only when the desired temperature is reached. The bodywork is made entirely of AISI 304 steel and has been designed with all components in the front to allow easy technical assistance. Sturdy and reliable dishwashers to best deal with every moment of your day.

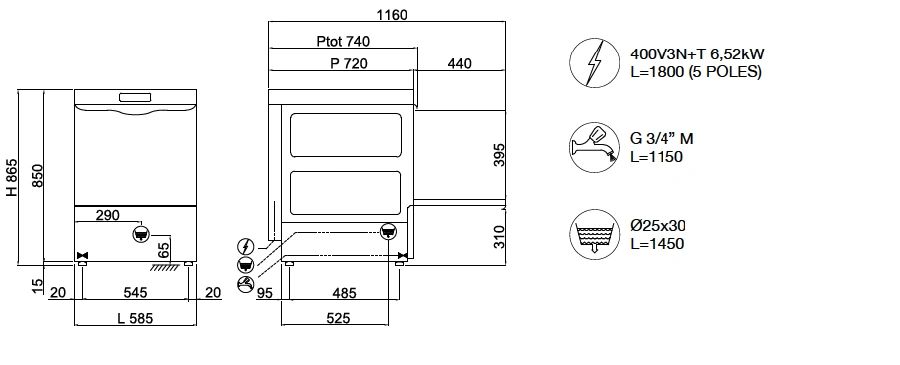

Dimensions - (mm) W - D - H                                                             585 x 715 x 865

N° baskets/hour - (+55°C)                                                                  Max 40

Height glass max                                                                                340mm

Tank heating element - Tank capacity                                                 2,6kW - 30lt

Boiler heating element - Boiler capacity                                             5.4kW - 7.3lt

Washing pump                                                                                    1.12kW / 1.5Hp

Total power input / Current                                                                  6.52kW / 32A

Standard input voltage                                                                        230V 50Hz

Recommended inlet water temperature                                             +55°C

Water hardness                                                                                  7÷10 °f

Water consumption per cycle (inlet suggested pressure 2 BAR)       2,0lt

Cutlery insert                                                                                       2

Basket for glasses dim 500 x 500 x 100mm                                       1

Basket for trays 10/12 compartments 500 x 600 x 100mm                 1

Basket for 22 plates 500 x 600 x 100mm                                            1

Adjustable detergent and rinse-aid dispenser                                     Electric

Drain pump                                                                                          Fitted as standard

Booster pump kit 0,5Hp

Input Voltage 3Phase 400v3n+t 50Hz

Heating Element 9kW

Basket for trays with 4 compartments 500 x 500 x 170mm

Reverse osmosis system

Kit 4 Stainless steel feet 50-70mm

Installation

Watersoftener

LIST PRICE £3050.00 + VAT

For discounts, rentals or credit quotes please contact us by either clicking below or ring our free phone number on 0333 456 4500
